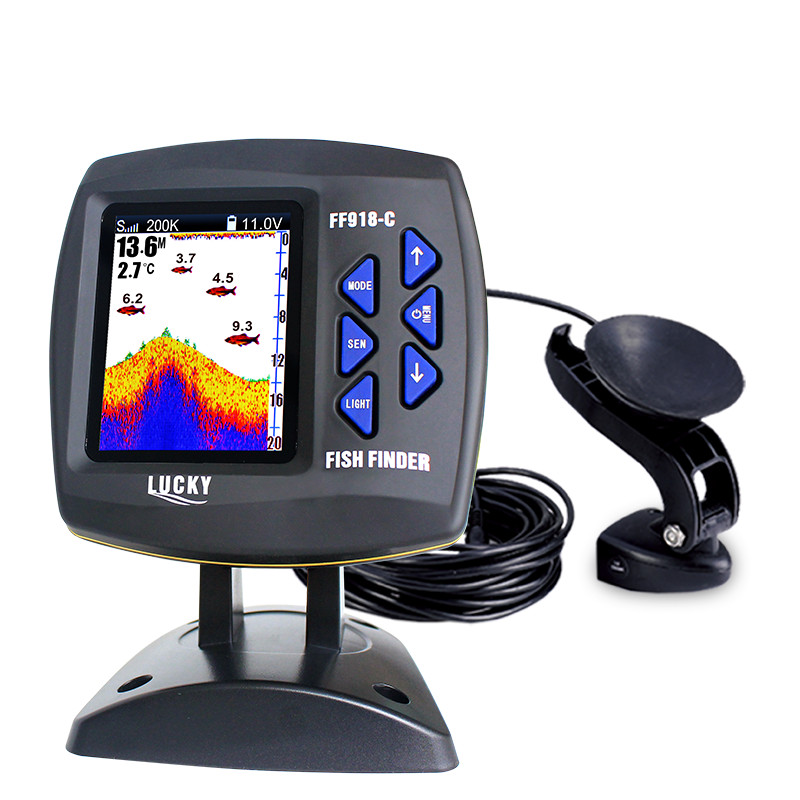

Boat Fish Finder

1) Display: MVA-TFT-LCD 65536 colors, 320V X 480H

2) Power output (RMS): 100 W

3) Power output (peak-to-peak): 800 W

4) Operating frequency: 200 KHz(transducer/ 125 KHz ( wireless )

5)Sonar coverage(wireless): 90 degrees at 125 KHz

6) Depth Units: Meter/Feet

7) Depth capability:328 feets (transducer mode 200KHZ)

8) Target separation: 2.5 inches

9) Fresh/Salt Water Environment

10) Temperature sensor: included in transducer

11) Operational Temperature: From -10°C to 50°C (14°F to 122°F)

12) Power input: 10 to 20 V DC / 8 AA alkaline batteries

13) Transducer mounting: Suction cup mount, wireless

14) Unit mounting: Portable case

15) Clear fish icon, fish alarm

16) Memory: Built –in memory stores sonar setting when the unit is turned off

17) W-Sensor could shut down when it is out of the water

18) W-Sensor battery requirement: One replaceable CR-2032 lithium battery

19)Operational wireless Frequency: 433.93MHz
