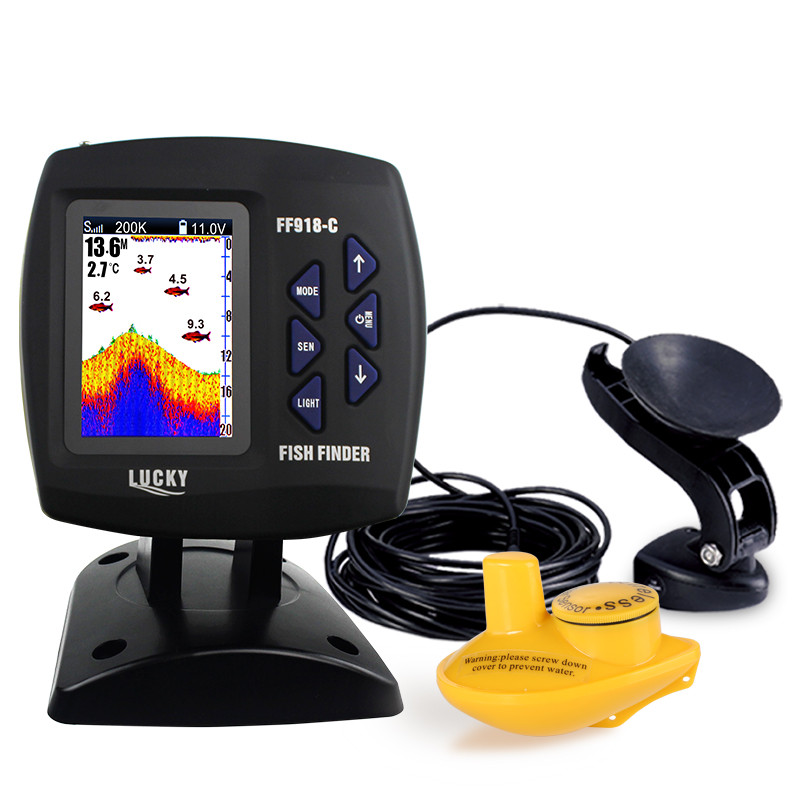

Boat Fish Finder

1) Display: MVA-TFT-LCD, 65536 Colors,320Vx480H

2) Power output (RMS): 100 W

3) Power output (peak-to-peak): 800 W

4) Operating frequency: 200 kHz(transducer/ 125 kHz ( wireless )

5) Sonar coverage(transducer mode): 20 degrees at 200 kHz

6) Sonar coverage(wireless): 90 degrees at 125 kHz

7) Depth Units: Meters/Feet

8) Depth capability: 328 feet (transducer mode 200KHZ)/140 feet (wireless mode 125KHZ)

9) Wireless operating range: Up to 165 feet

10) Target separation: 2.5 inches

11) Fresh/Salt Water Environment

12) Temperature sensor: included in transducer

13) Operational Temperature: From -10C to 50C (14 Fto122 F)

14) Power input: 10 to 20 V DC / 8 AAA alkaline battery

15) Transducer mounting: Suction cup mount, wireless

16) Unit mounting: Portable case

17) Clear fish icon, fish alarm

18) Memory: Built –in memory stores sonar setting when the unit is turned off

19) W-Sensor could shut down when it is out of the water

20) W-Sensor battery requirement: One replaceable CR-2032 lithium battery

21)Operational wireless Frequency: 433.93mHz
